1. BP8-99.5X118.8X8-NBR
  2. BP8
  3. Oil Seals / Duo Cone / End Caps
  4. Standard Seals

BP8-99.5X118.8X8-NBR

BP8-99.5X118.8X8-NBR
  • d (h9)
  • D (H9)
  • H
  • Material
  • Unit

$ 41.68
$ 33.34 33.34 AUD

$ 41.68

Quantity
Your Price
1 - 4
$ 33.34
5 - 9
$ 31.68
10 - 24
$ 30.01
25 - 49
$ 27.09
50 +
$ 20.84

This combination does not exist.

Add to Cart

BP8 99.5 X 118.8 X 8 NBR

Details:

d (h9)
:
99.5mm
D (H9)
:
118.8mm
H
:
8mm
Material
:
NBR
BP8-99.5X118.8X8-NBR

Design

  • V-rings are often combined with other types of seals such as radial shaft seals. In some cases,V-rings are used as the primary seal part. As they offer optimal axial sealing, they are used to protect the metal part against dirt, grease, oil and dust.

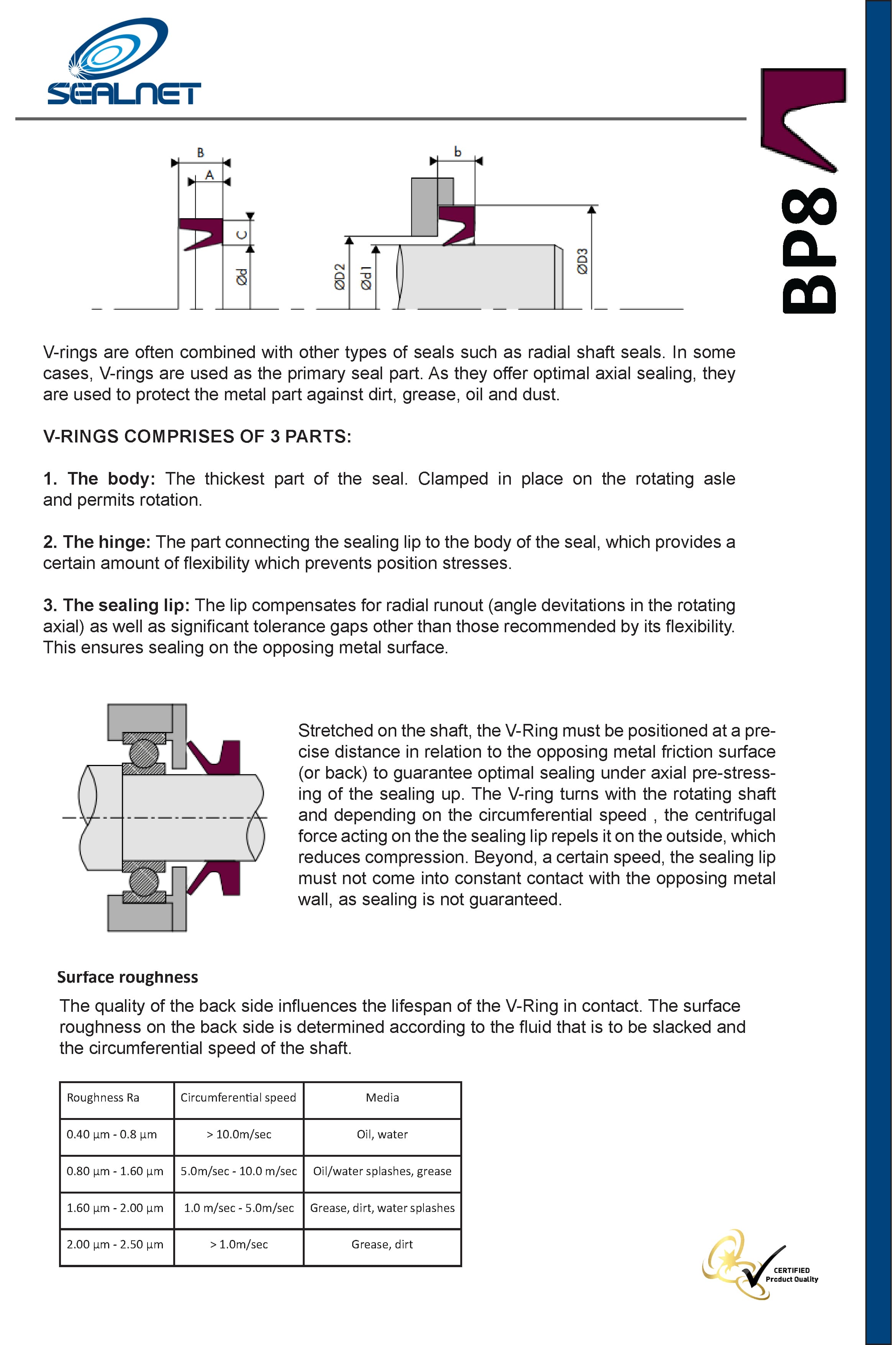

Download Datasheet

V-Rings comprises of 3 parts:

  • The body: The thickest art of the seal. Clamped in place on the rotating aisle and permits rotation
  • The hinge: The part connecting the sealing lip to the body of the seal, which provides a certain amount of flexibility which prevents position stresses.
  • The sealing lip: The lip compensates for radial run out (angle devitations in the rotating axial) as well as significant tolerance gaps other than those recommended by its flexibility.This ensures sealing on the opposing metals surface.
