1. GS2SB-90x105x8.5-PU/A
  2. GS2SB
  3. Single Acting/ ROD Seals
  4. Standard Seals

GS2SB-90x105x8.5-PU/A

  • d (h9)
  • D (H9)
  • H
  • Material
  • H1+0.2
  • Unit

$ 48.49
$ 38.79 38.79 AUD

$ 48.49

Quantity
Your Price
1 - 4
$ 38.79
5 - 9
$ 36.85
10 - 24
$ 34.91
25 - 49
$ 31.52
50 +
$ 24.25

This combination does not exist.

Add to Cart

GS2SB 90 X 105 X 8.5 PU / A

Details:

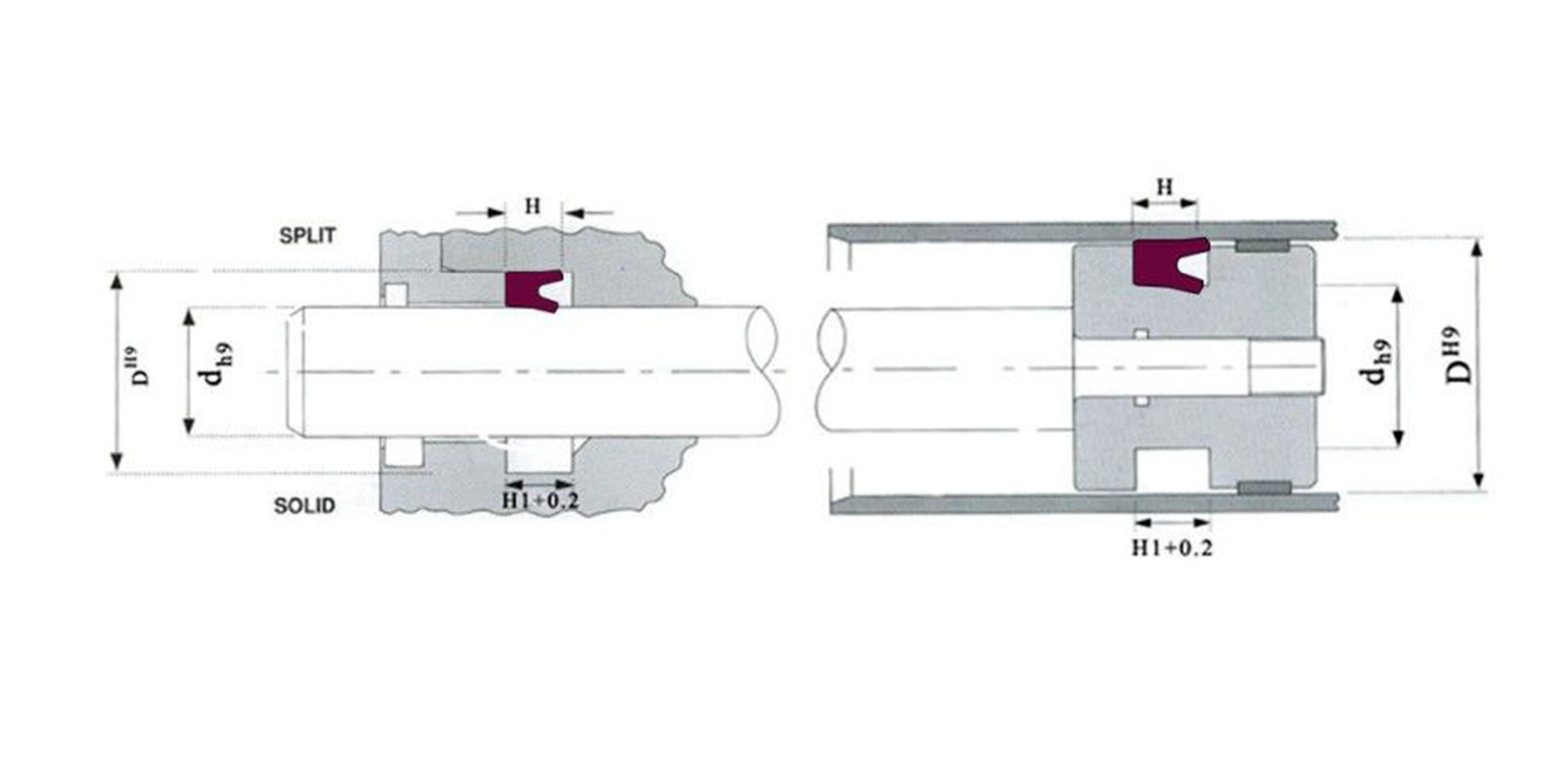

d (h9)
:
90mm
H1+0.2
:
9.5mm
D (H9)
:
105mm
H
:
8.5mm
Material
:
PU/A
GS2SB-90x105x8.5-PU/A

Design

  • GS2B is a designed to offer a more effective bore sealing in a wide variety of applications. It is fitted with a hard plastic anti extrusion ring for a more improved extrusion resistance. The inner lip of the seal is much shorter and robust and also provides an improved sealing and compression set characteristics. The energizer ensures complete lip actuation under all pressure conditions and cushions the seal against shock loads.

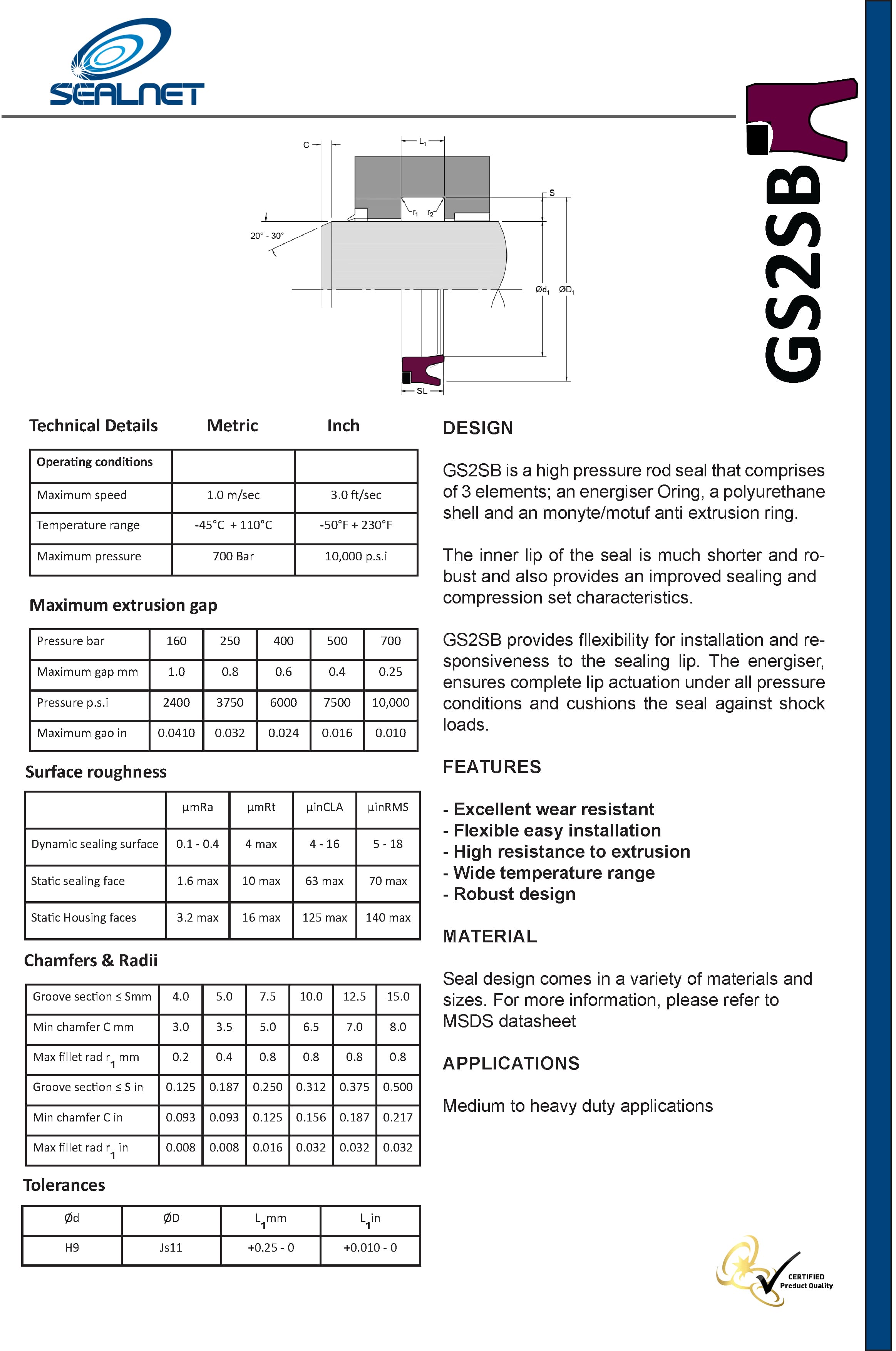

Download Datasheet


Features

  • Excellent wear resistance
  • Flexible easy installation
  • High resistance to extrusion
  • Wide temperature range
  • Robust design


Applications

  • Medium to heavy duty applications
