1. GS39-125x145x16-COMPO
  2. GS39
  3. Single Acting/ ROD Seals
  4. Standard Seals

GS39-125x145x16-COMPO

  • d (h9)
  • D (H9)
  • H
  • Material
  • H1+0.2
  • Unit

$ 47.71
$ 38.17 38.17 AUD

$ 47.71

Quantity
Your Price
1 - 4
$ 38.17
5 - 9
$ 36.26
10 - 24
$ 34.35
25 - 49
$ 31.01
50 +
$ 23.85

This combination does not exist.

Add to Cart

GS39 125 X 145 X 17 COMPO

Details:

d (h9)
:
125mm
H1+0.2
:
17mm
D (H9)
:
145mm
H
:
16mm
Material
:
COMPO
GS39-125x145x16-COMPO

Design

  • GS39 is a buffer seal which is developed to work in conjunction with high performance rod seals. It is interchangeable with common buffer seal housings. The seal design provides a valve action to prevent excessive pressure build up in the cavity between the buffer seal and the rod seal. An extrusion ring is fitted to provide maximum extrusion resistance against shock pressure loads.

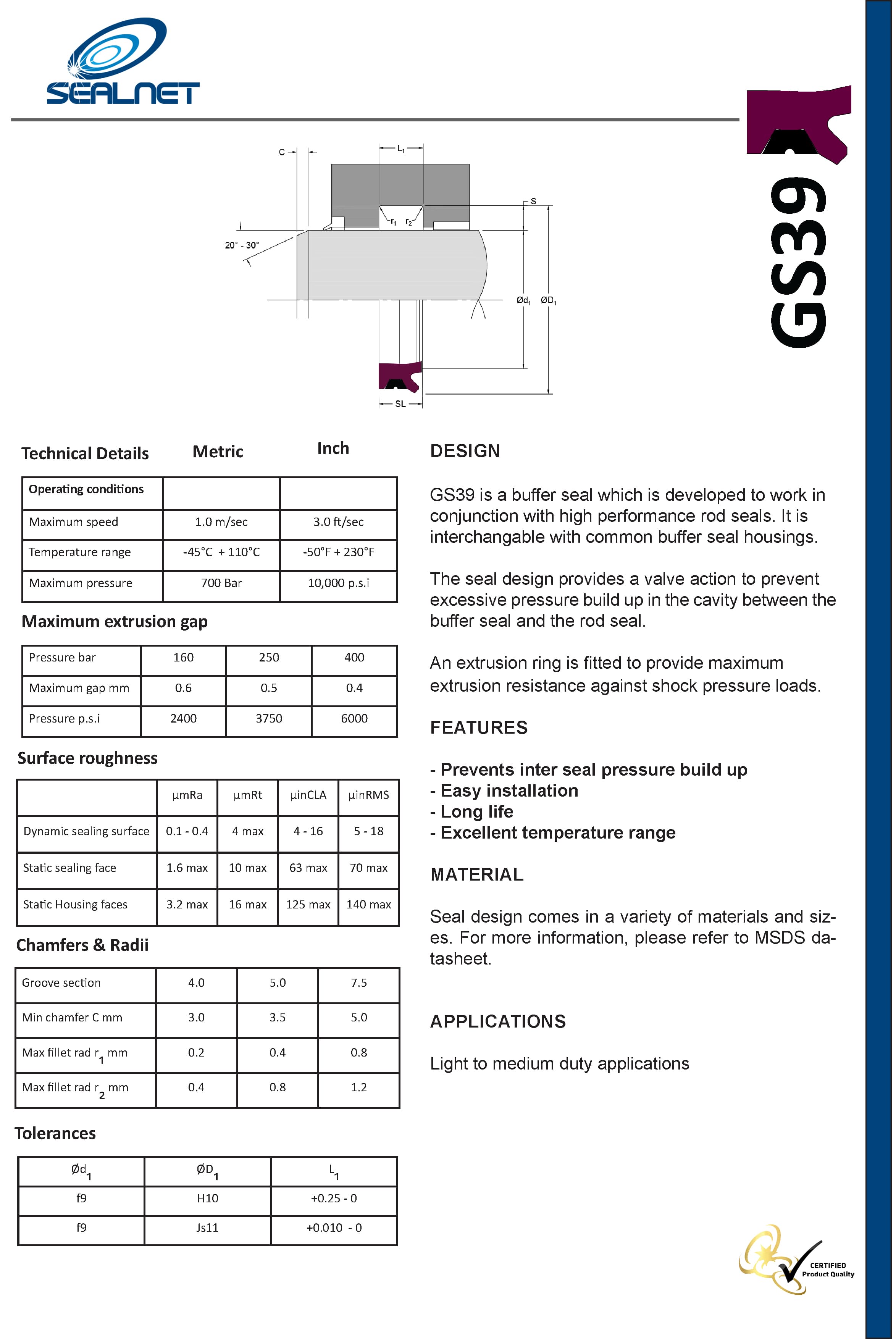

Download Datasheet


Features

  • Prevents inter seal pressure build up
  • Easy installation
  • Long life
  • Excellent temperature range


Applications

  • Light to medium duty applications
