GS9S-63x80x5-COMPO

  • d (h9)
  • D (H9)
  • H
  • Material
  • Unit

$ 34.92
$ 27.93 27.93 AUD

$ 34.92

Quantity
Your Price
1 - 4
$ 27.93
5 - 9
$ 26.54
10 - 24
$ 25.14
25 - 49
$ 22.70
50 +
$ 17.46

This combination does not exist.

Add to Cart

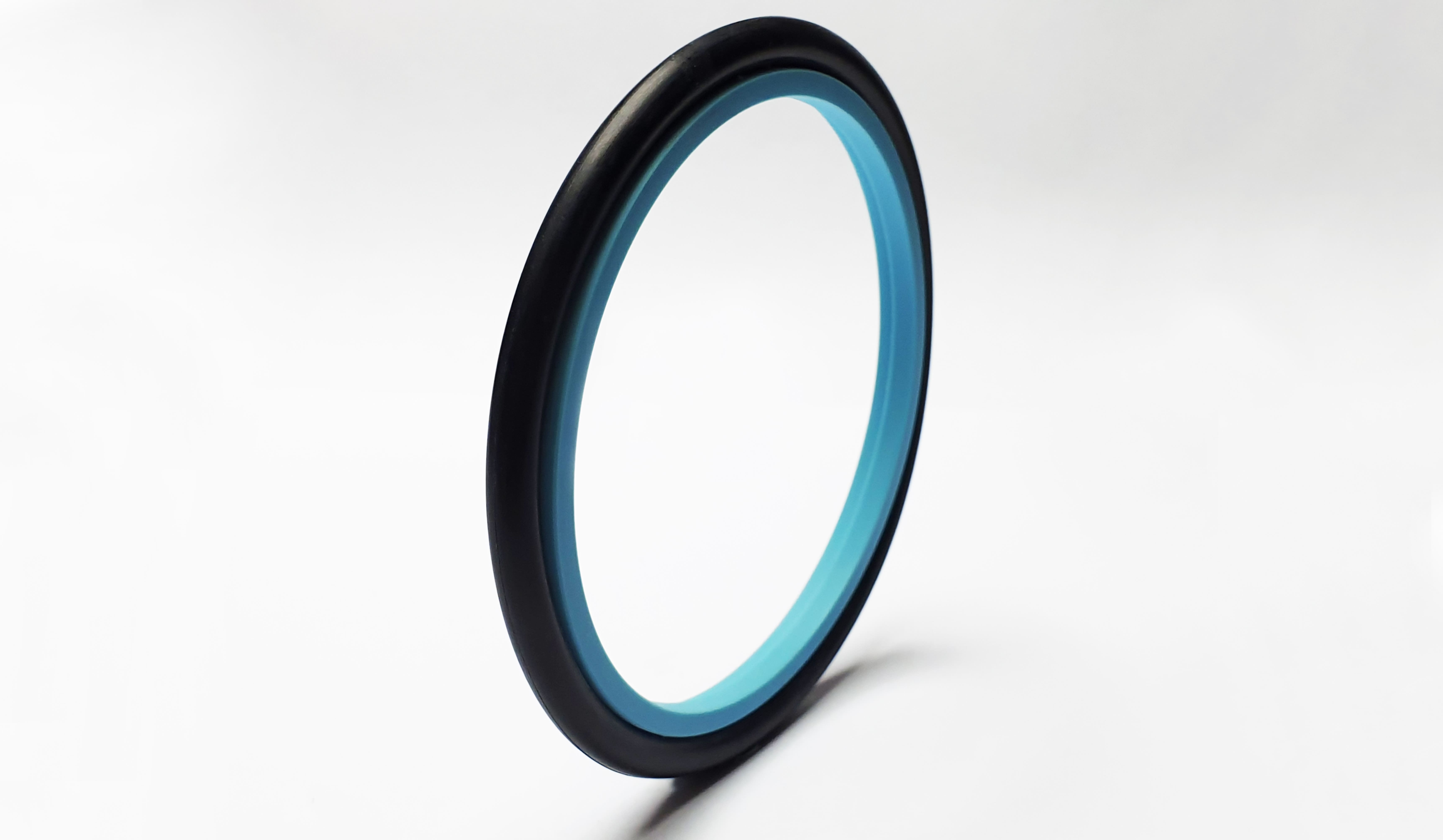

GS9S 63 X 80 X 5 COMPO

Details:

d (h9)
:
63mm
D (H9)
:
80mm
H
:
5mm
Material
:
COMPO
GS9S-63x80x5-COMPO

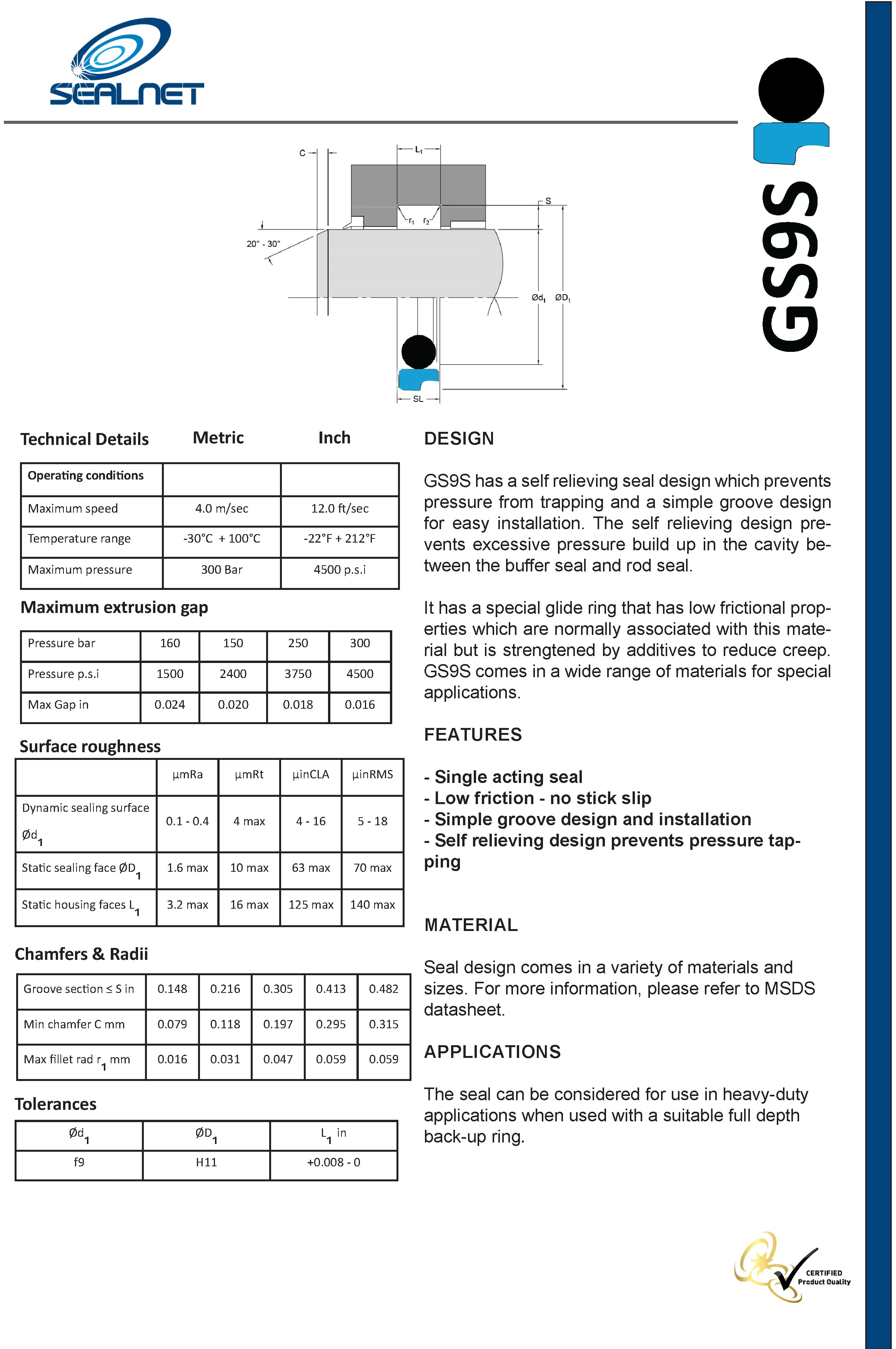

Design

  • GS9S has a self relieving seal design which prevents pressure from tapping and a simple groove design for easy installation. The self relieving design prevents excessive pressure build up in the cavity between the buffer seal and rod seal. It has a special glide ring that has low frictional properties which are normally associated with this material. It is strengthened by additives to reduce creep. GS9S comes in a wide range of materials for special applications.

Features

  • Single acting seal
  • Low friction - no stick slip
  • Simple groove design and installation
  • Self relieving design prevents pressure tapping

Applications

  • The seal can be considered for use in heavy-duty applications when used with a suitable full depth back up ring.
