1. ORBS009E70PC
  2. ORBS BRITISH STD
  3. O'Rings/Quad Rings/Backups
  4. Standard Seals

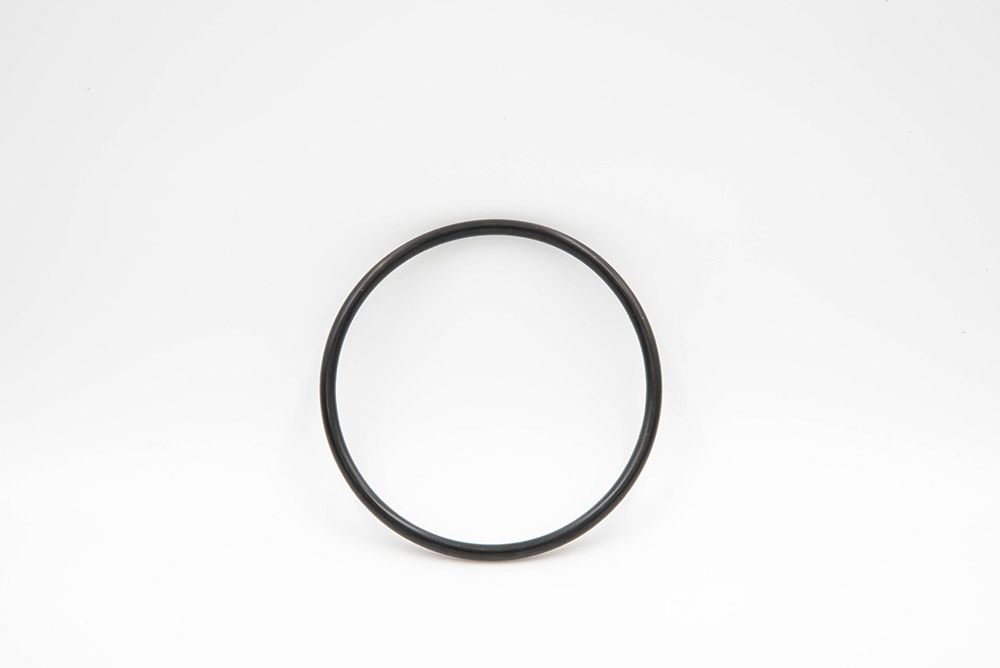

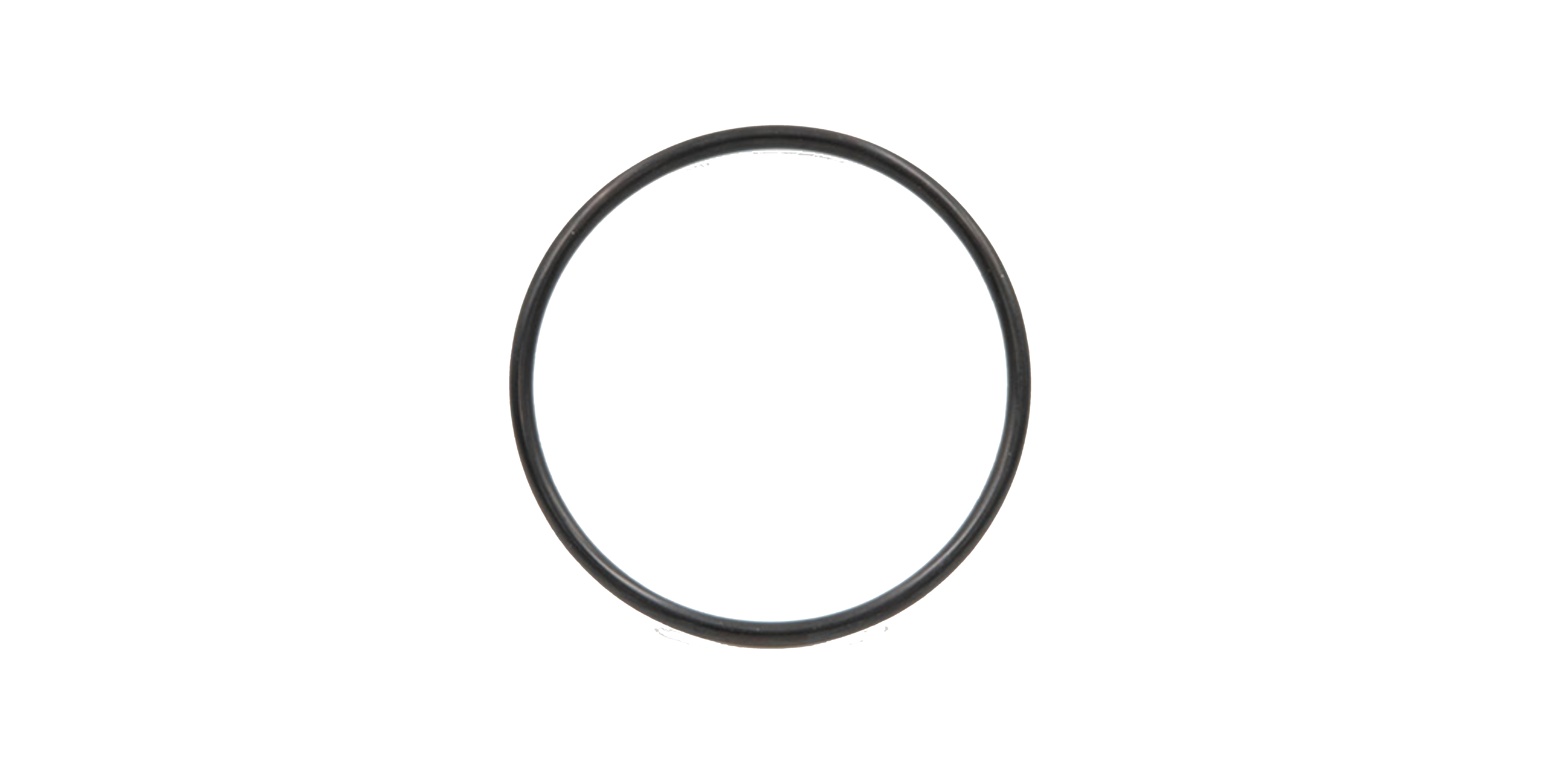

ORBS009E70PC

  • d (h9)
  • H
  • Material
  • d (M)
  • Unit
  • D (M)
  • H (M)

$ 0.26
$ 1.21 1.21 AUD

$ 0.26

Quantity
Your Price
1 - 2
$ 1.21
3 - 5
$ 0.71
6 - 10
$ 0.56
11 - 49
$ 0.41
50 - 99
$ 0.24
100 +
$ 0.21

This combination does not exist.

Add to Cart


Details:

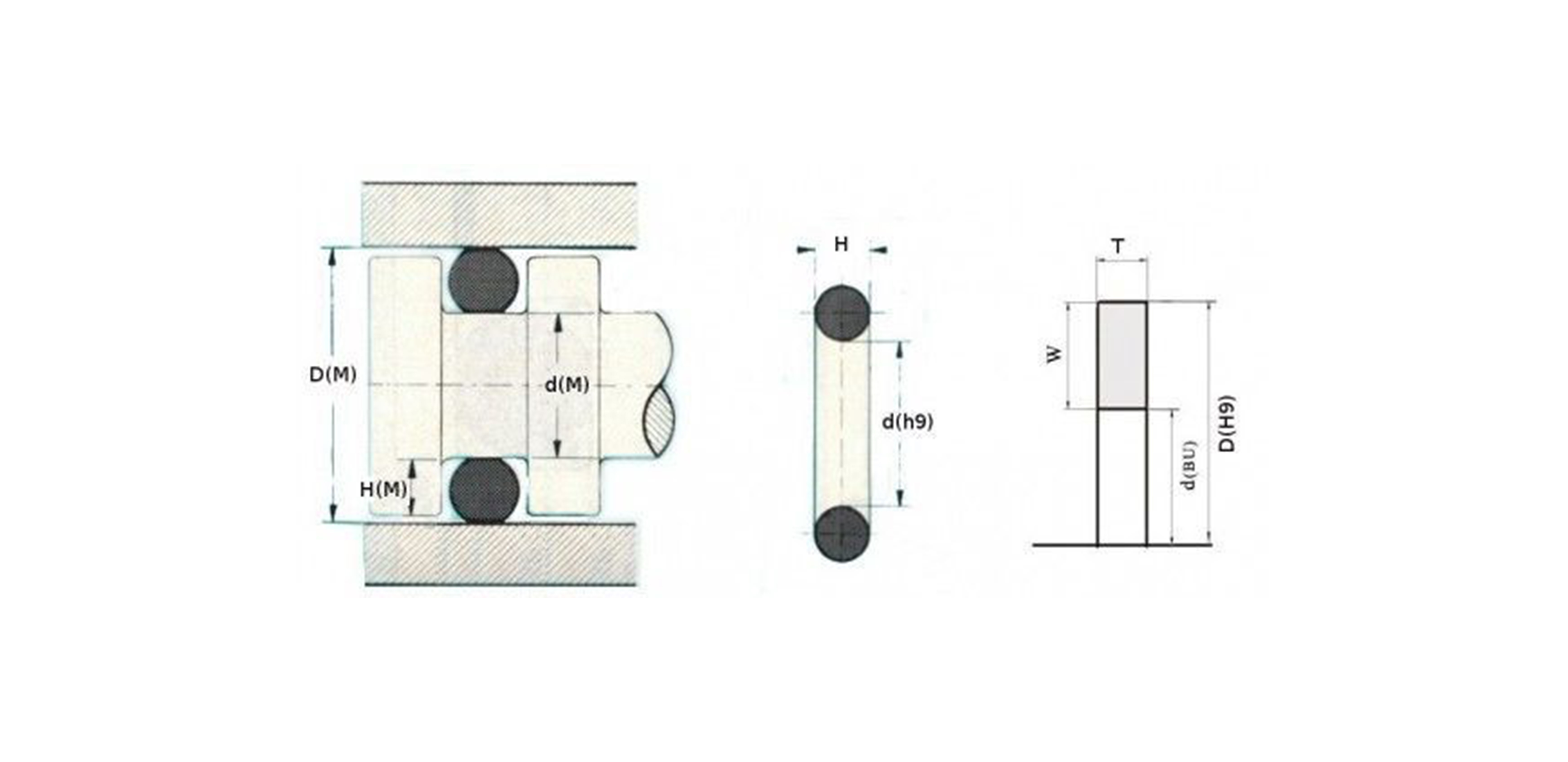

d (h9)
:
0.20787" (5.28mm)
d (M)
:
0.21875" (5.56mm)
D (M)
:
0.34375" (8.73mm)
H (M)
:
0.0625" (1.59mm)
H
:
0.07008" (1.78mm)
Material
:
E70 PC
ORBS009E70PC

Design

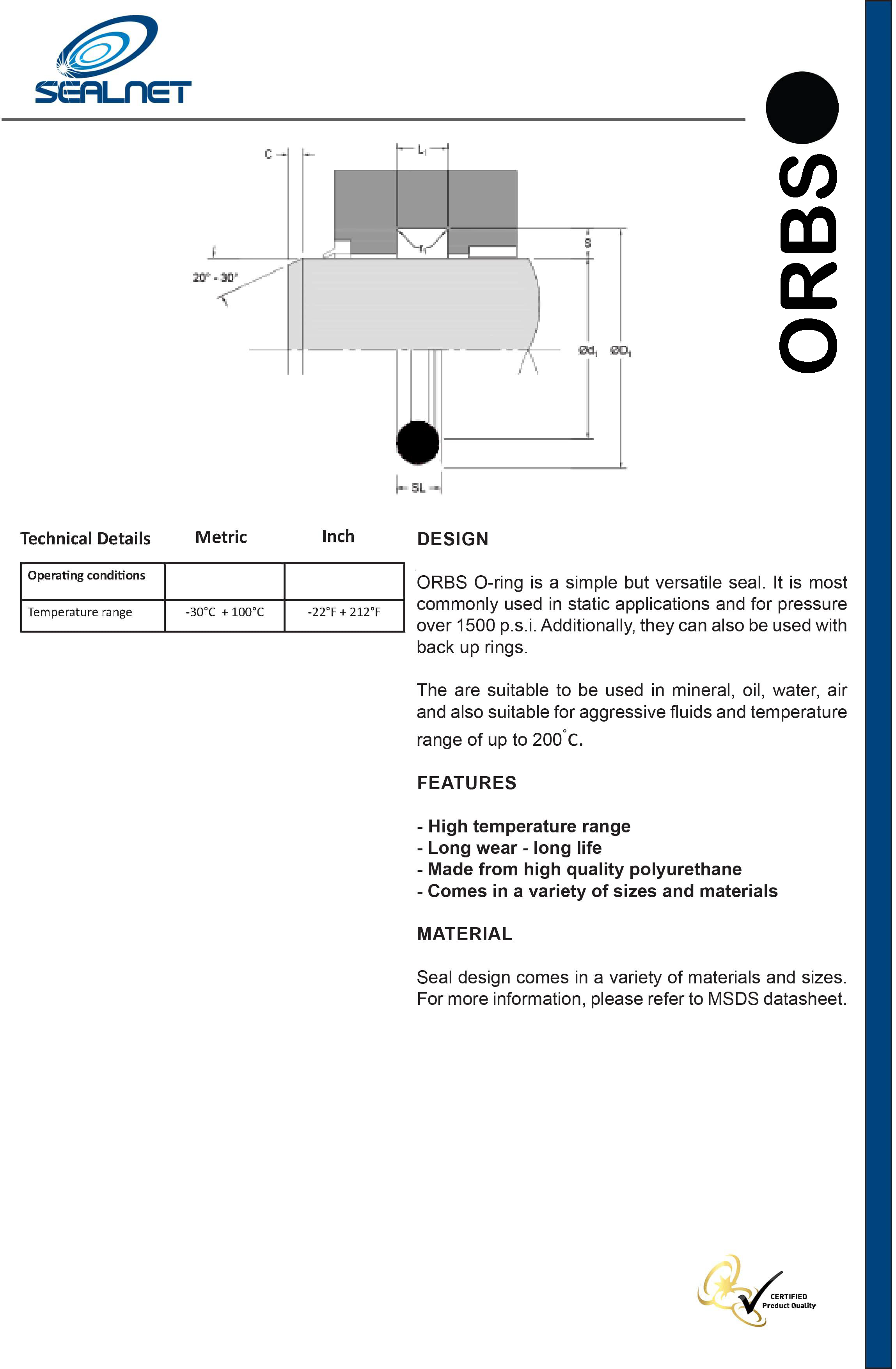

  • ORBS is a British standard size O'ring
  • Most common sealing solutions
  • Comes in a wide range of sizes
  • O'rings maintain sealing contact force by radical or axial deformation in the seal housing between two machine components

Applications

  • ORBS O'ring are used in a wide variety of applications sealing various media
