PAD1-28x36x7.8-COMPO

  • d (h9)
  • D (H9)
  • H
  • Material
  • Da
  • L
  • D1
  • Unit
  • D2
  • h

$ 29.74
$ 23.79 23.79 AUD

$ 29.74

Quantity
Your Price
1 - 4
$ 23.79
5 - 9
$ 22.60
10 - 24
$ 21.41
25 - 49
$ 19.33
50 +
$ 14.87

This combination does not exist.

Add to Cart

PAD1 28 X 36 X 7.8 COMPO

Details:

d (h9)
:
28mm
Da
:
35.1mm
L
:
7mm
D1
:
29mm
D2
:
32mm
h
:
6.3mm
D (H9)
:
36mm
H
:
7.8mm
Material
:
COMPO

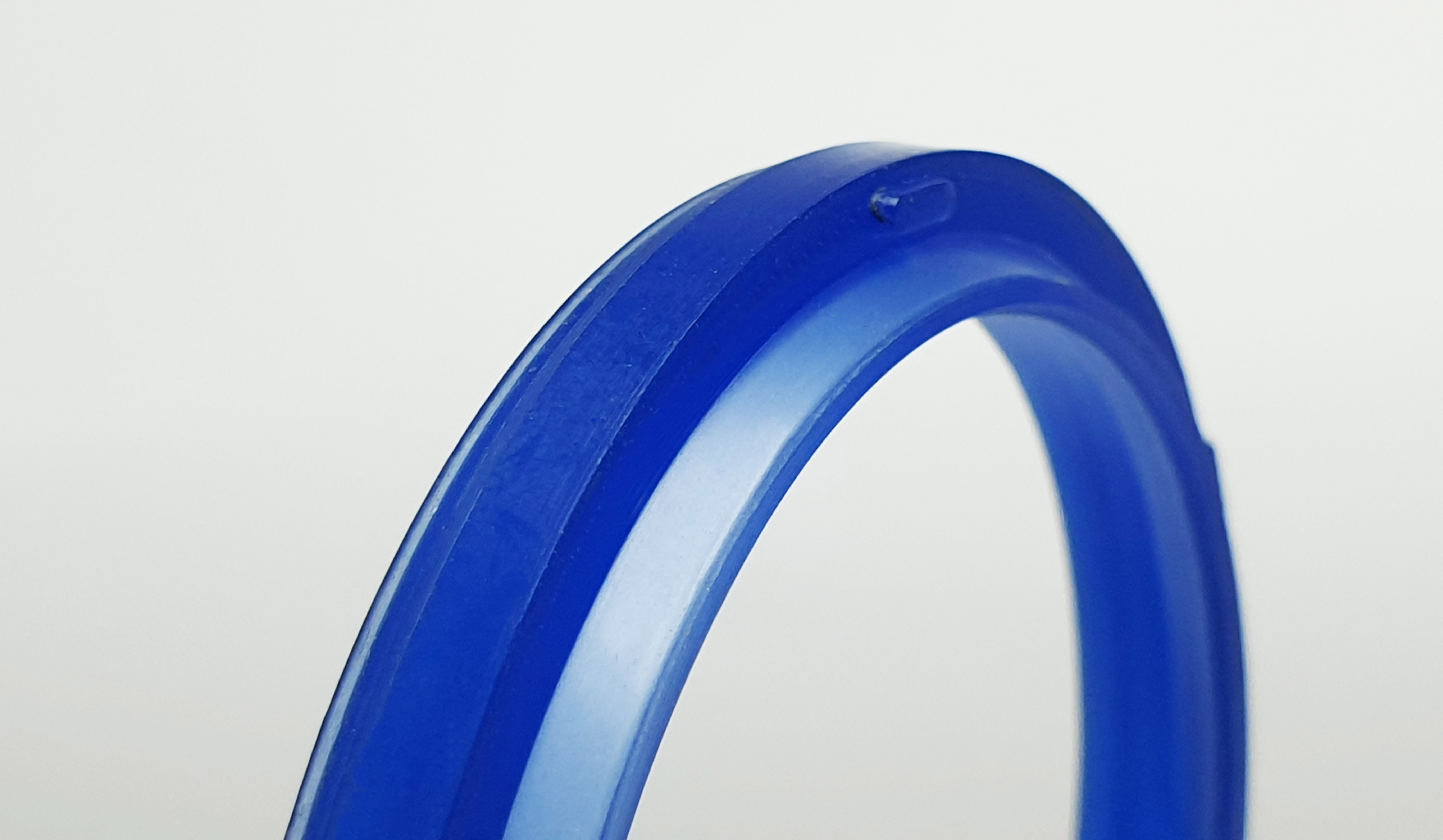

PAD1-28x36x7.8-COMPO

Design

  • PAD1 is a robust pneumatic cushioning seal that is designed specifically for cushioning pistons in pneumatic cylinders. PAD1 is easily snapped into the groove, which should be free of all contaminants and particles before installation. For long service life, initial lubrication is required.

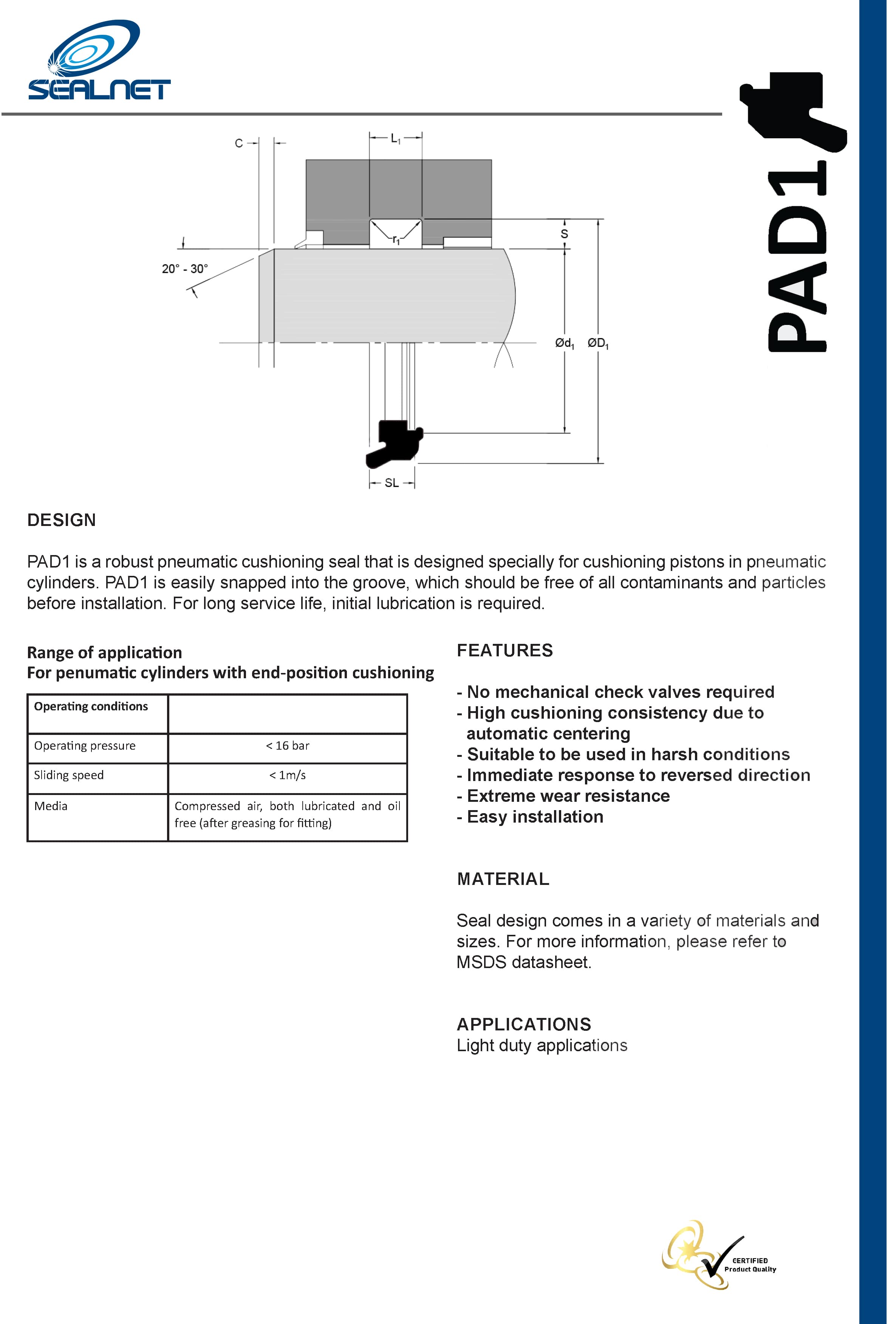

Download Datasheet


Features

  • No mechanical check valves required
  • High cushioning consistency due to automatic centering
  • Suitable to be used in harsh conditions
  • Immediate response to reversed direction
  • Extreme wear resistance
  • Easy installation


Applications

  • Light duty applications
