PAS8-32x43x41/37-NBR

  • d (h9)
  • D (H9)
  • H
  • Material
  • L
  • Unit

$ 165.17
$ 132.13 132.13 AUD

$ 165.17

Quantity
Your Price
1 - 4
$ 132.13
5 - 9
$ 125.53
10 - 24
$ 118.92
25 - 49
$ 107.36
50 +
$ 82.58

This combination does not exist.

Add to Cart

PAS8 32 X 43 X 41 / 37 NBR

Details:

d (h9)
:
32mm
L
:
37mm
D (H9)
:
43mm
H
:
41mm
Material
:
NBR
PAS8-32x43x41/37-NBR

Design

  • PAS8 Pneumatic Seal
  • The Pneumatic Seal is especially adapted to low speed and pressure situations
  • Design provides an extremely smooth, steady movement with less breakaway.
  • Provides effective sealing whilst providing the option of reducing the weight of the unit

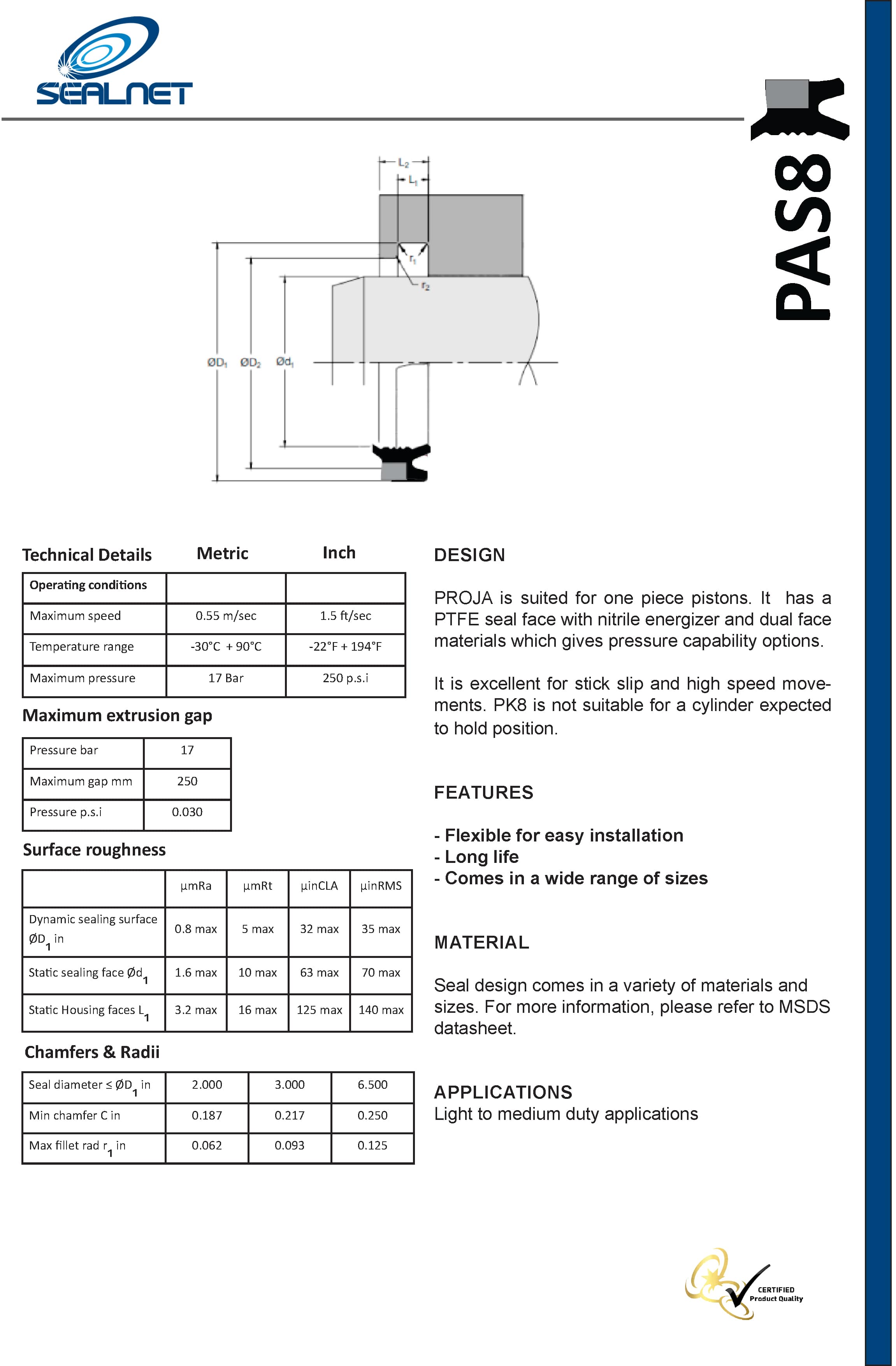

Download Datasheet


Applications

  • Primarily designed for low and medium pressure applications
  • Pressure range may be extended by the utilization of supporting back up rings


Fluids

  • Mineral based oils, water/glycol and water emulsions
