1. PKDA-72x90x22.5/3.6-COMPO
  2. PKDA
  3. Double Acting/Piston Seals
  4. Standard Seals

PKDA-72x90x22.5/3.6-COMPO

  • d (h9)
  • D (H9)
  • H
  • Material
  • H2
  • H1+0.2
  • Unit
  • d1
  • d2

$ 47.76
$ 38.21 38.21 AUD

$ 47.76

Quantity
Your Price
1 - 4
$ 38.21
5 - 9
$ 36.30
10 - 24
$ 34.39
25 - 49
$ 31.04
50 +
$ 23.88

This combination does not exist.

Add to Cart

PKDA 72 X 90 X 22.5 / 3.6 COMPO

Details:

d (h9)
:
72mm
H2
:
3.6mm
H1+0.2
:
22.5mm
d1
:
86mm
d2
:
89mm
D (H9)
:
90mm
H
:
28.2mm
Material
:
COMPO
PKDA-72x90x22.5/3.6-COMPO

Design

  • PKDA is a double acting piston seal that has a robust heavy duty seal assembly for split pistons. It allows the use of larger clearances and with the use of bearings rings, is to restrict the piston length. The seal design consists of a seal and two L shaped bearings. The center of the seal is bonded and is compressed by the housing to obtain an effective low pressure seal.

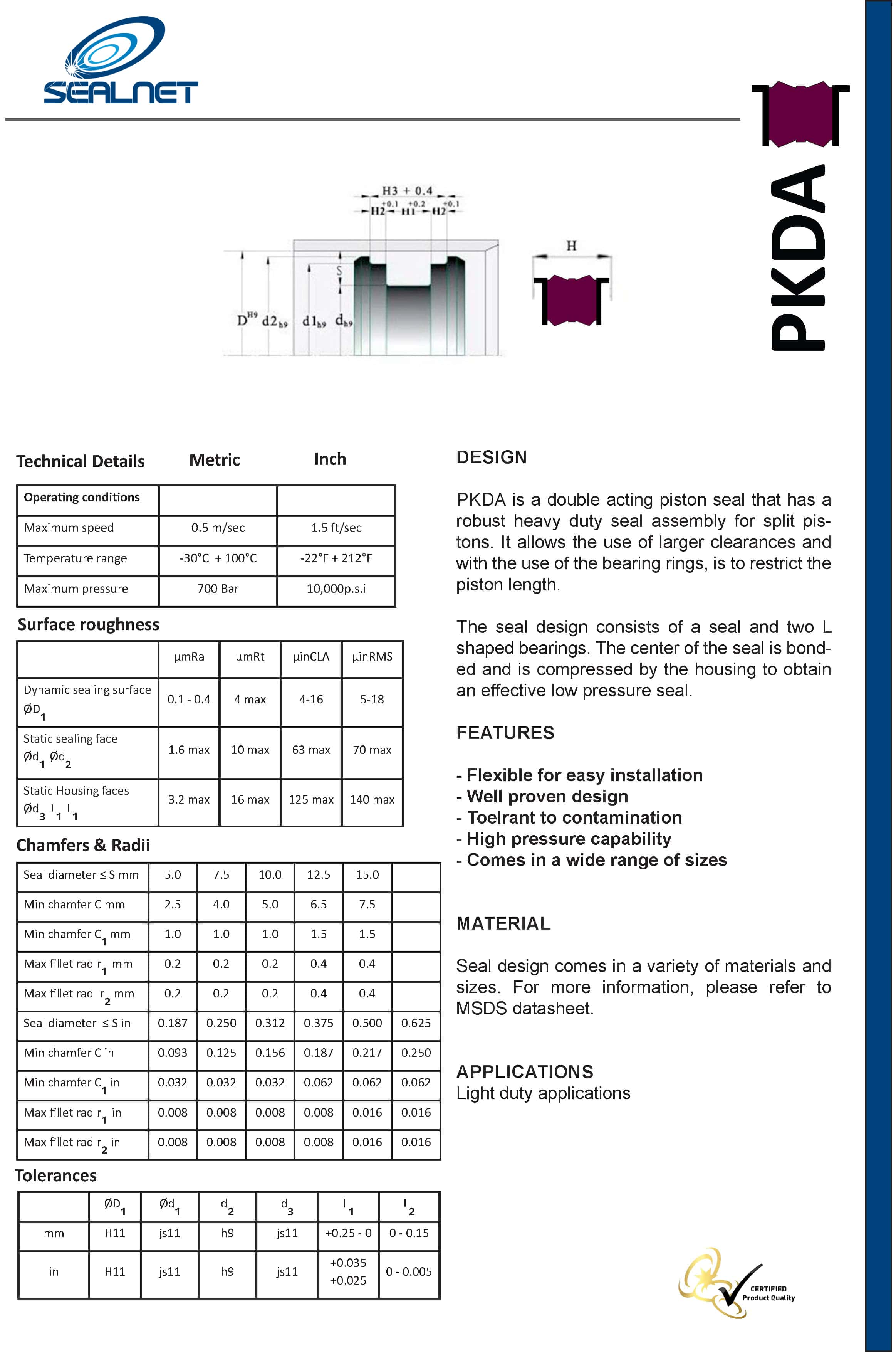

Download Datasheet


Features

  • Flexible for easy installation
  • Well proven design
  • Tolerant to contamination
  • High pressure capability
  • Comes in a wide range of sizes


Applications

  • Light duty applications
