1. QAE-2x2.75x0.25-POLY
  2. QAE
  3. Single Acting/ ROD Seals
  4. Standard Seals

QAE-2x2.75x0.25-POLY

  • d (h9)
  • D (H9)
  • H
  • Material
  • H1+0.2
  • Unit

$ 19.11
$ 15.29 15.290000000000001 AUD

$ 19.11

Quantity
Your Price
1 - 4
$ 15.29
5 - 9
$ 14.53
10 - 24
$ 13.76
25 - 49
$ 12.42
50 +
$ 9.56

This combination does not exist.

Add to Cart

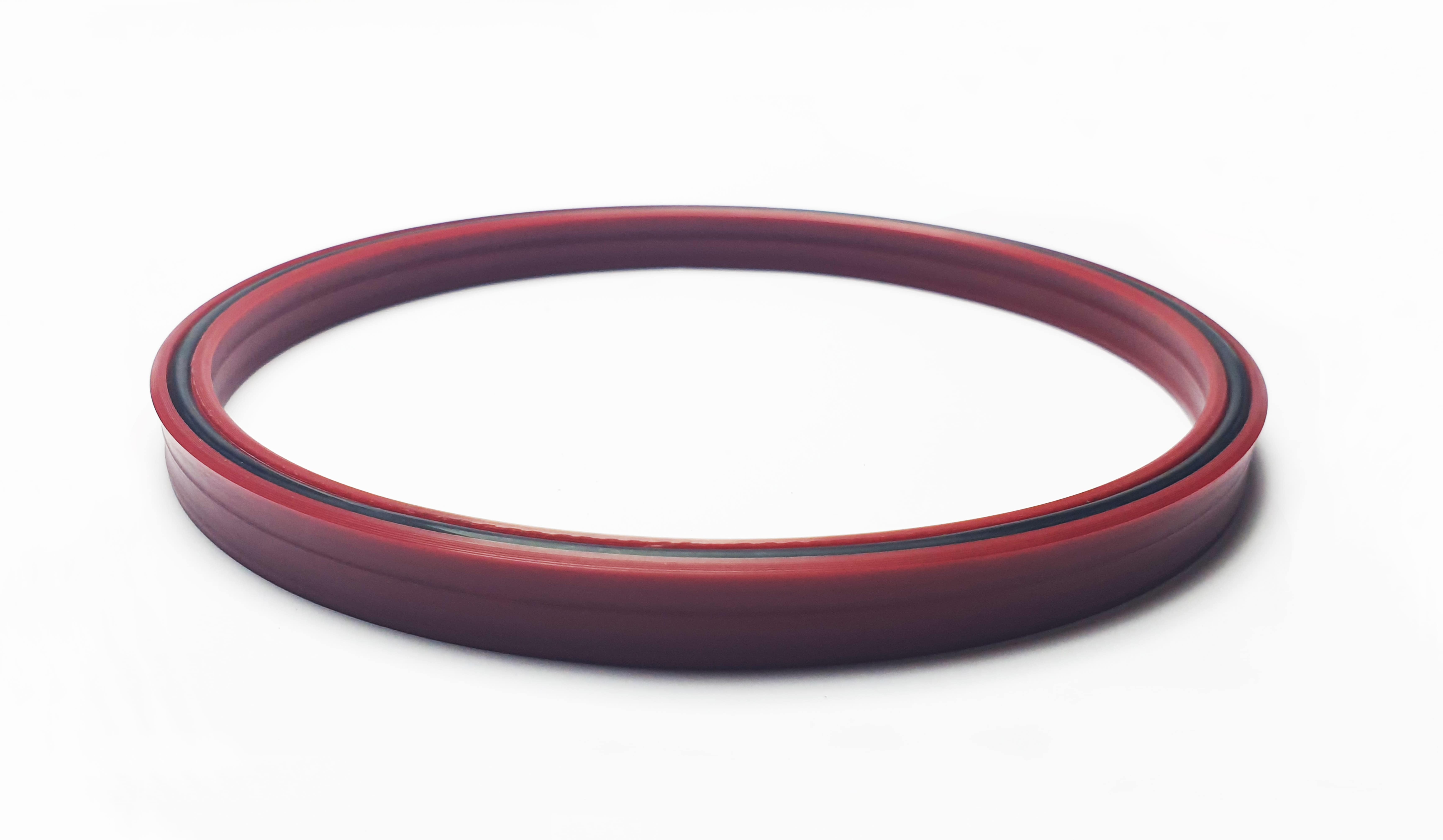

QAE 2" X 2.75" X 0.275" POLY

Details:

d (h9)
:
2" (50.8mm)
H1+0.2
:
0.275" (6.99mm)
D (H9)
:
2.75" (69.85mm)
H
:
0.25" (6.35mm)
Material
:
POLY
QAE-2x2.75x0.25-POLY

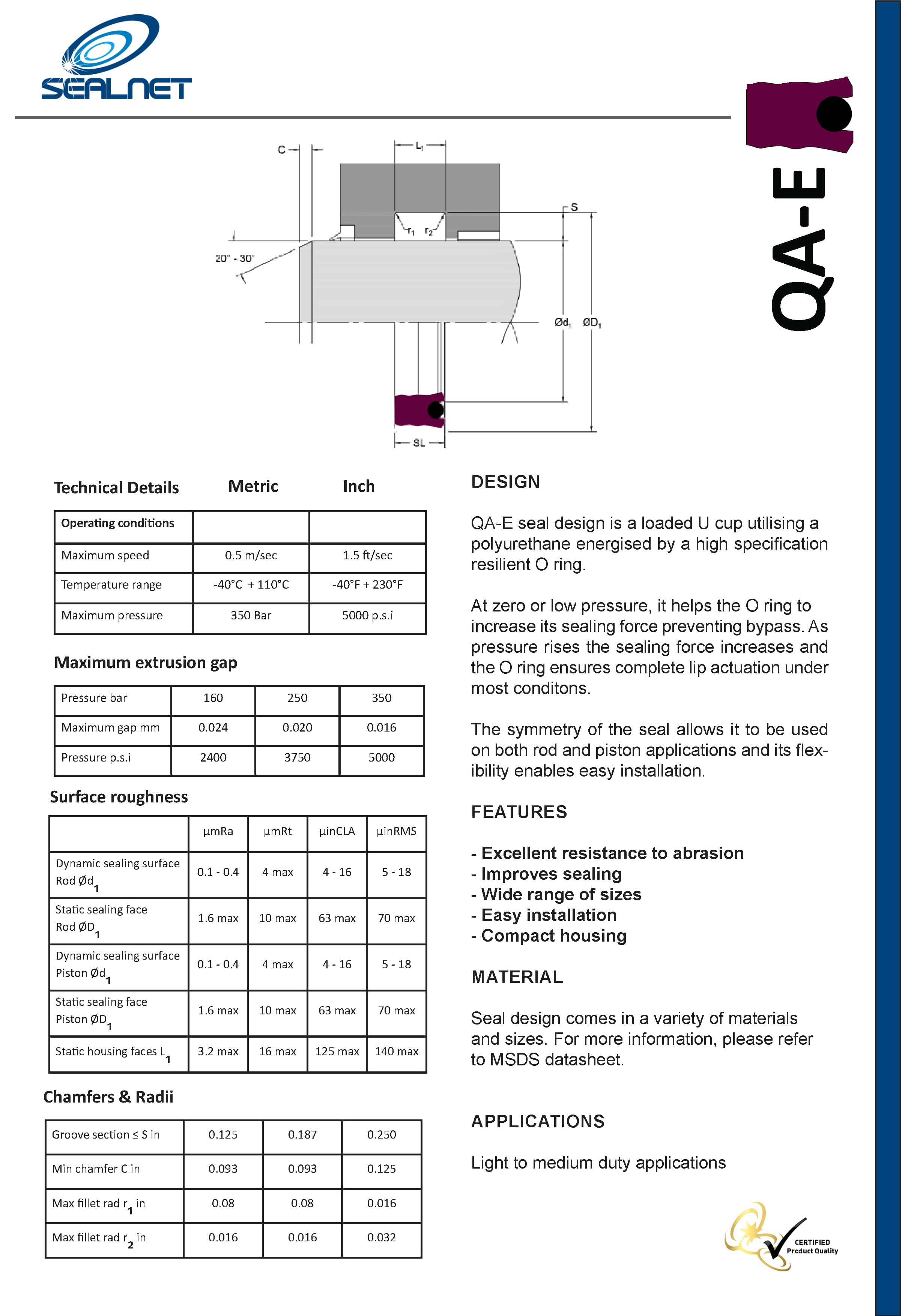

Design

  • QAE seal design is a loaded U cup utilizing a polyurethane energized by a high specification resilient O-ring. At zero or low pressure, it helps the O'ring to increase its sealing force preventing bypass. As pressure rises, the sealing force increases and the O'ring ensures complete lip actuation under most conditions. The symmetry of the seal allows it to be used on both rod and piston applications and its flexibility enables easy installation.

Features

  • Excellent resistance to abrasion
  • Improves sealing
  • Wide range of sizes
  • Easy installation
  • Compact housing

Application

  • Light to medium duty application
